Forge 29″ Hardtail Frameset
From: £ 695.00

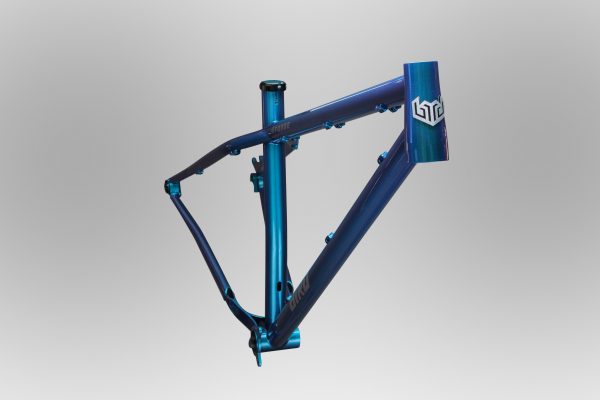

The Forge has been years in the making. Its roots can be traced to initial designs in 2013 and we’ve been beavering away on it ever since. The final bike is a trail-ready 29” wheeled beast, taking a 130-160mm fork and made from the perfect mix of 4130 steel and Reynolds 853 DZB.
A slack 64 degree head angle combined with short chainstays, sleek tubing and a slim tapered headtube means the Forge is aesthetically traditional with modern geometry and is ready to conquer the gnarliest trails you can find whilst looking beautiful.
- 29 Inch Wheels
- 140-160mm front travel
- 4130 steel with Reynolds 853 DZB top tube and down tube

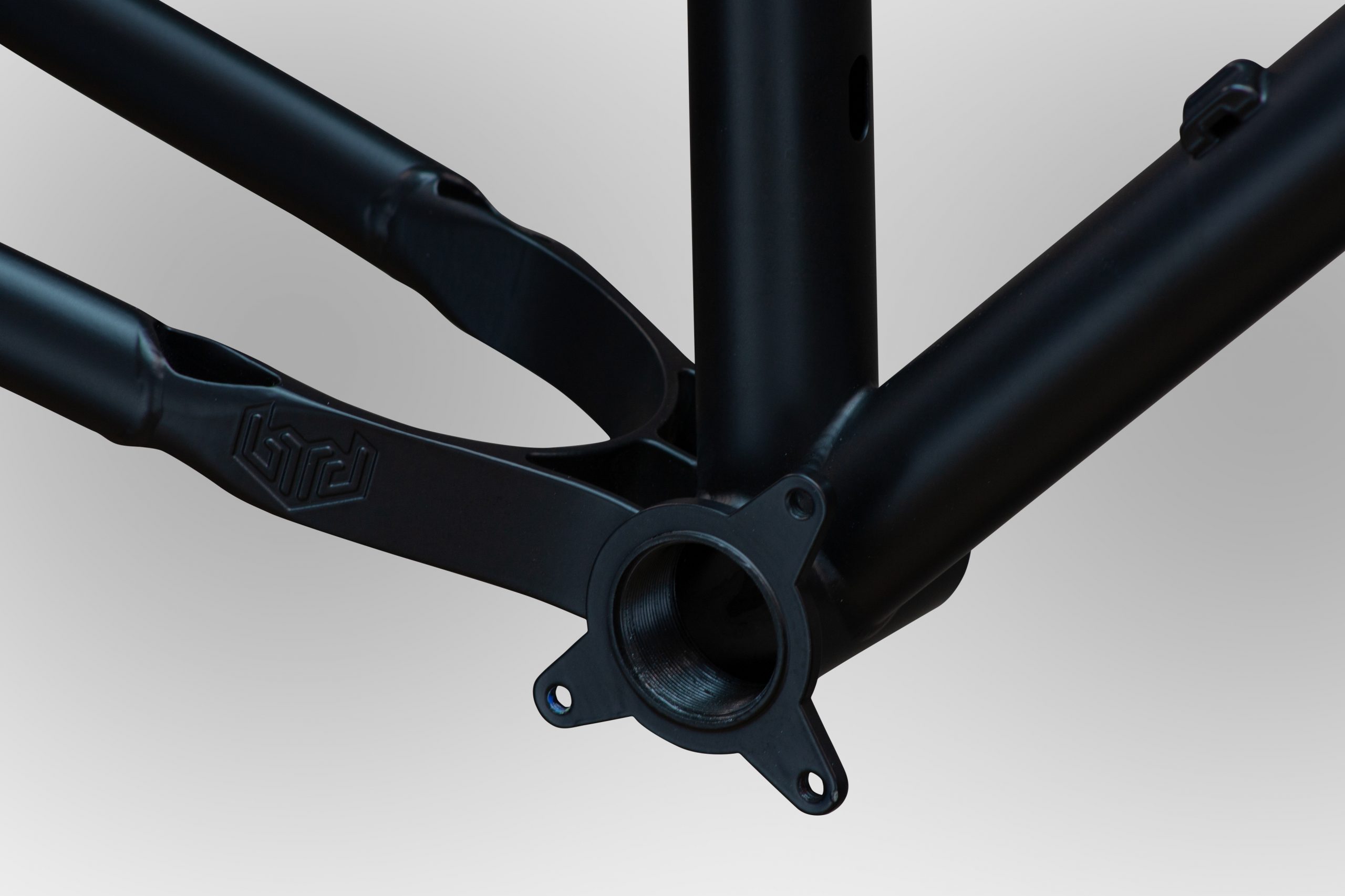

- Investment cast chainstay yoke for maximum tyre clearance (2.6”)
- ISCG05 mount
- 2x Bottle cage mounts on the downtube
- SRAM UDH (Universal Derailleur Hanger)
- External cable routing
- Threaded bottom bracket
All Bird framesets come ready to build with clean chased BB threads, tapped ISG05 mounts and axle threads, as well as fully faced BB and headtube.
